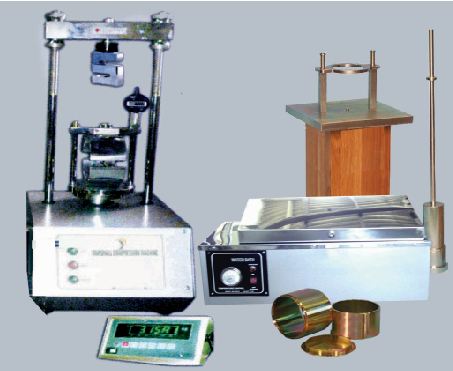

PP 25-1282-D DIGITAL READOUT MARSHALL TEST SET
Asphalt Equipment

ASTM D-1559, D-5581 and AASHTO T-245 This equipment is intended to meet the standard of the Marshall test, which is the method covers the measurement of resistance to plastic flow of cylindrical speciment of bituminous paving mixture loaded on the lateral surface by means of the Marshall apparatus. This test method is for use with mixtures containing asphalts cement and aggregate up to 11/2 in. (37.5 mm) nominal maximum size.

Consists Of:

PP 25-1282-1

Compression Machine Steel frame electric, 220 V-AC, 1/2 HP 1 Phase, speed : 2" per-minute.

1 set

PP 25-1282-2

Standard Compaction Mold 4" dia. Machined steel, galvanized, 4"dia., 3" height, with collar and base plate.

1 set

PP 25-1282-2

Modified Compaction Mold 6" dia. Machined steel, galvanized, 6"dia., 4,5" height, with collar and base plate.

1 set

PP 25-1282-4/1

Stability Mold 4" dia. (breaking head) Cast alumunium, split type 6" i.d., 4" wide

1 set

PP 25-1282-4/2

Stability Mold 6" dia. (breaking head) Cast alumunium, split type 6" i.d., 4" thick and 6" nominal wide.

1 set

PP 25-1282-5

Compaction Hammer Machine steel, plated 10 lbs, hammer weight, 18" drop height.

1 set

PP 25-1282-6

Compaction Pedestal Wooden base 8" x 8" (0.67 to 0.77 kg/cm3) with steel platen 12" x 12"

1 set

PP 25-1282-7

Compaction Mold Holder Machine steel, quick clamping system for 4" and 6" i.d mold

1 set

PP 25-1282-8

Specimen Extruder Steel frame, hydraulic system, available for 4" and 6" dia. Mold samples

1 set

PP 25-1282-9D

Flow Meter Cast alumunium, clamping bolt, with digital indicator range up to 30 mm and accuracy 0.01 mm

1 set

PP 29-1278

Water Bath Stainless steel, water heater, 220 V-AC thermostat 30 - 85 deg.C

1 set

PP 29-1268-6/1

S-type load cell 50 kN capacity available for any catergory asphalts mixing test. -Environmentally Protected to IP67 -All Stainless Steel for industrial Environments -Calibration Certificate Supplied

1 set
