Hydraulic Cone Penetrometer
Easy to use and transporting, operated by hydraulic pump petrol engine.
Design for soft clay, reliable, and easy to maintenance.
Gross Weight: 375 kg
Easy to use and transporting, operated by hydraulic pump petrol engine.
Design for soft clay, reliable, and easy to maintenance.
Gross Weight: 375 kg

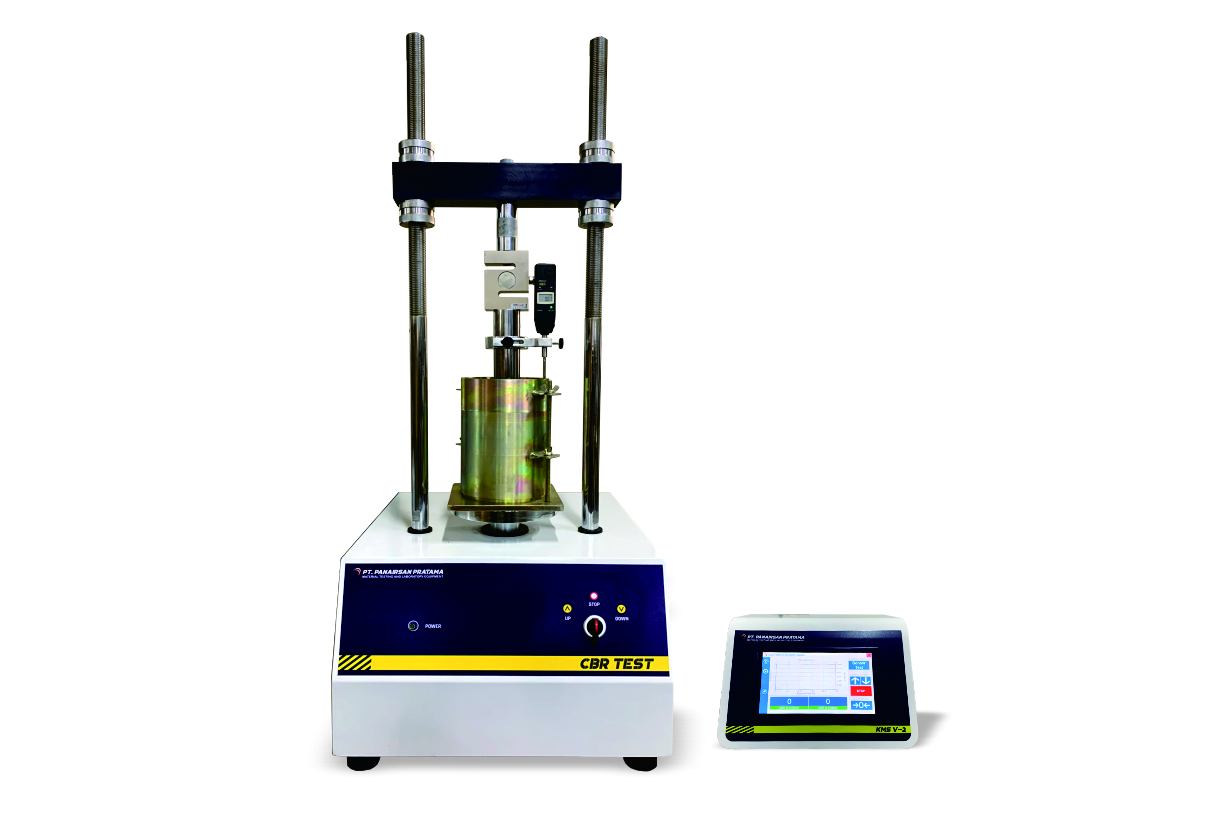

Electrical Loading System to determine the bearing ratio of soil.
The electrical loading machine 20 V-AC. 1/2 HP, 1 Phase, speed up to 0.05″/min, reversing switch, proving ring reading (calibrated by JNK). Dimension (l x w x h): 110 x 70 x 120 cm. Gross weight : 200 kg
Provides test loads up to 300 kgf at any speed from 0 to 3 mm/minute. This feature provides the capability for use in application, such as: Constant rate of load and constant rate of stress.
SCPT soundings are carried out to determine the dynamic moduli (shear modulus G, elasticity modulus E and Poisson’s ratio), knowing the density of the individual layers. Of these, the shear modulus has so far been the parameter mostly calculated.
For cutting core samples from asphalt, concrete and other material on the road, run ways and structures. Cast alumunium frame, vertical drilling position, gasoline engine type 5 Hp; 4 cycle. Supplied with diamond core bit 4†dia, sample tong, breaking strip spanner.
