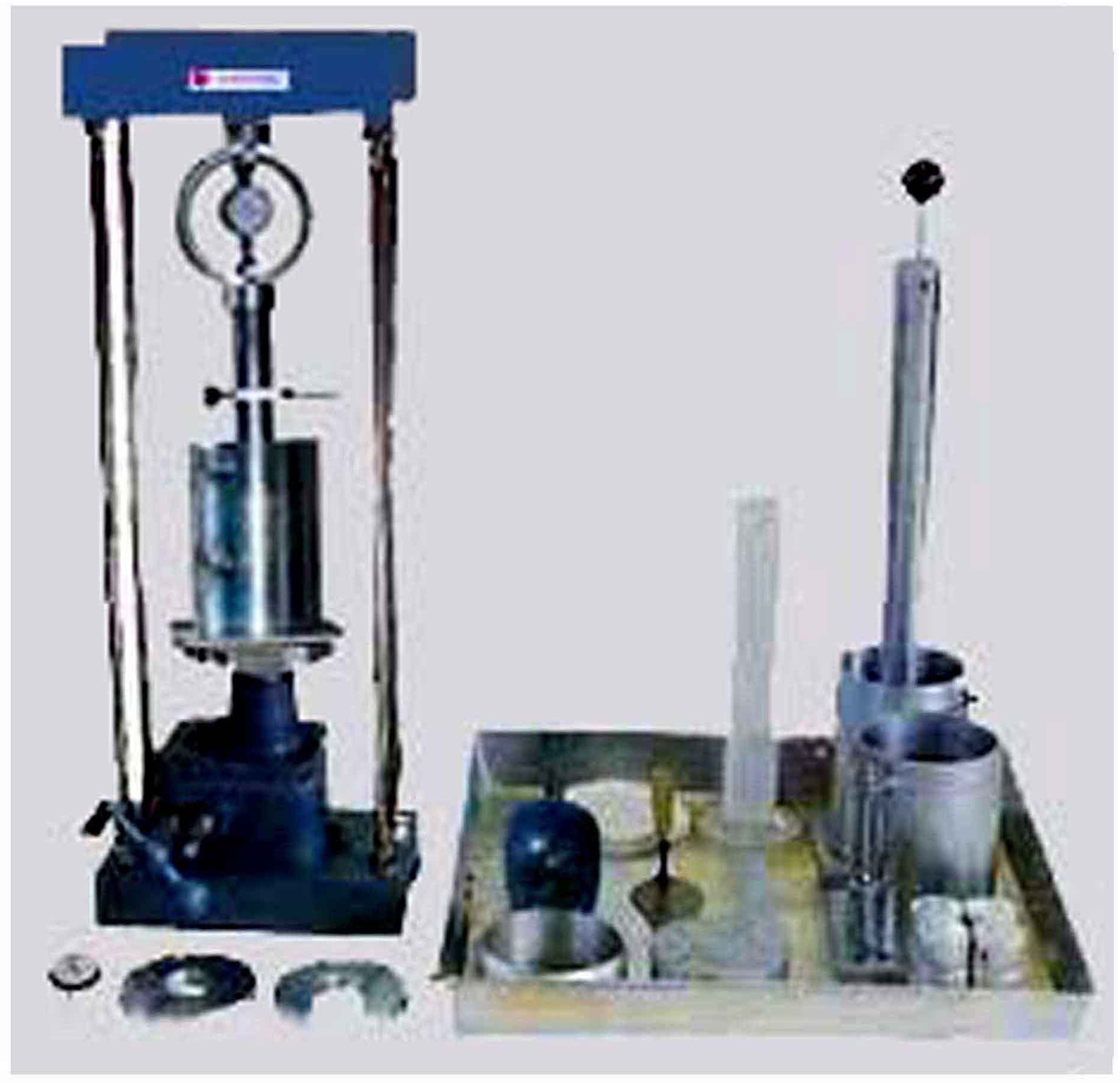

PP 23-1287 HAND OPERATED LABORATORY CBR TEST SET
Soil Equipment

ASTM D-1883 / AASHTO T-193 Mechanical Loading System. For determining the bearing ratio of soil. Mechanical jack 10.000 lbs capacity, two speed, cast alumunium housing. The proving ring reading (calibrated) Supplied with three mould, 150 mm dia, 175 mm height, 50 mm height of collar.

Dimensions (l x w x h)
110 x 70 x 120 cm
Gross Weight
200 kg

Consists Of:

PP 23-1287-1

Mechanical Loading Machine Steel frame, hand operated, two speeds, 10.000 lbs capacity.

1 pc

PP 23-1287-2

CBR Mold Machine steel, 6" i.d, 7" height, 2" height of collar.

3 pc

PP 23-1287-3

Spacer Dish Machine steel, 5 15/16" dia, 2.416" height.

1 pc

PP 23-1287-4

Cutting Edge Machine steel, sharp edge.

1 pc

PP 23-1287-5

Circular Surcharge Weight Machine steel, 5 7/8" dia 5 lbs weight.

3 pc

PP 23-1287-6

Slotted Surcharge Weight Machine steel, 5 7/8" dia 5 lbs weight.

3 pc

PP 23-1287-7

Modified Proctor Hammer Machine steel, plated, 18" drop height, 10 lbs weight.

1 pc

PP 23-1287-8

Filter Paper 6" dia., 100 sheets/box.

1 pc

PP 23-1287-9

Swell Plate

3 pc

PP 23-1287-10

Swell Tripot

3 pc

PP 29-1268-6

Proving Ring 6.000 lbs capacity.

1 pc

PP 29-1269-5

Dial Indicator range 30 mm >0.01 mm

1 pc

PP 29-1286-4

Square Pan Galvanized steel, 65 x 65 x 7.5 cm.

1 pc

PP 29-1291-1

Thin Box Alumunium, 60 gr capacity.

12 pc

PP 29-1293-6

Graduated Cylinder Plastic, 1000 ml capacity.

1 pc

PP 29-1343-2

Scoop Cast alumunium.

1 pc

PP 29-1361-1

Trowel Pointed type.

1 pc

PP 29-1351-1

Straight Edge 254 mm length.

1 pc
